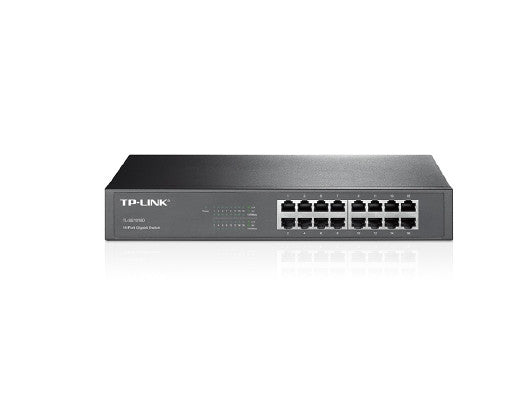

TP-LINK - 16-Port Gigabit Desktop/Rackmount Switch - TL-SG1016D
|
*** NOTE - This is a NEW item! ***
|
Suggested Retail Price New: $119.99 ~ Price**: $108.00
Description:
- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power up to 15%*
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
What This Product Does
- The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 15% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network
TP-LINK Green Technology
- This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials Besides, 80% of the packaging material can be recycled
High Performance
- All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput With 10KB Jumbo frame, the performance of large files transfers is improved significantly And IEEE 8023x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly
Easy to Use
- The auto features of this gigabit switch make installation plug and play and hassle-free No configuring is required Auto MDI/MDIX eliminates the need for crossover cables Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition
Features:
- Innovative energy-efficient technology saves power up to 15%
- Supports IEEE 8023x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 32Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Plug and Play design simplifies installation
Specifications:
HARDWARE FEATURES
- Standards and Protocols: IEEE 8023i, IEEE 8023u, IEEE 8023ab , IEEE 8023x
- Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: Maximum: 133W (220V/50Hz)
- Dimensions ( W x D x H ) 11.6*7.1*1.7 in (294*180*44 mm)
PERFORMANCE
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 238Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- Green Technology: Innovative energy-efficient technology saves power up to 15%
- Transfer Method: Store-and-Forward
OTHERS
- Certification: FCC, CE, RoHs
- System Requirements: Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux
- Environment Operating Temperature: 0?~40? (32?~104?);
- Storage Temperature: -40?~70? (-40?~158?);
- Operating Humidity: 10%~90% non-condensing;
- Storage Humidity: 5%~90% non-condensing
Package Content:
- 16-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
TL-SG1016D - Made in China
*************************************
