StarTech M.2 SATA SSD to 2.5in SATA Adapter - M.2 NGFF to SATA Converter - 7mm - Open-Frame Bracket - M2 Hard Drive Adapter

$48.00 was $52.99

Created by TiGuyCo Plus


Product:

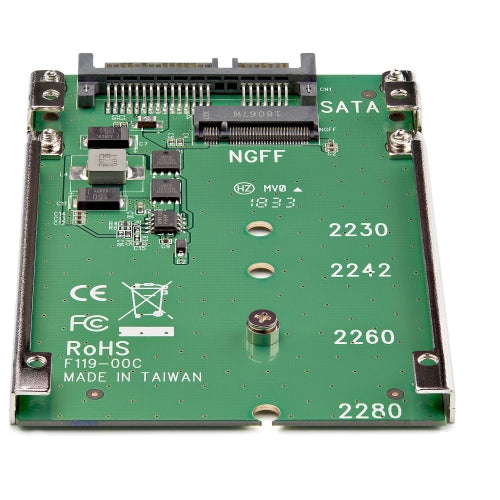

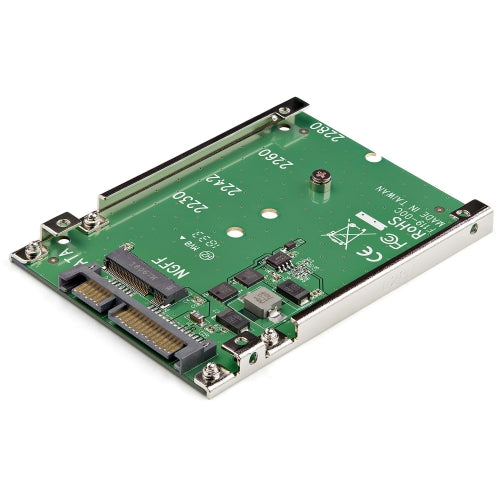

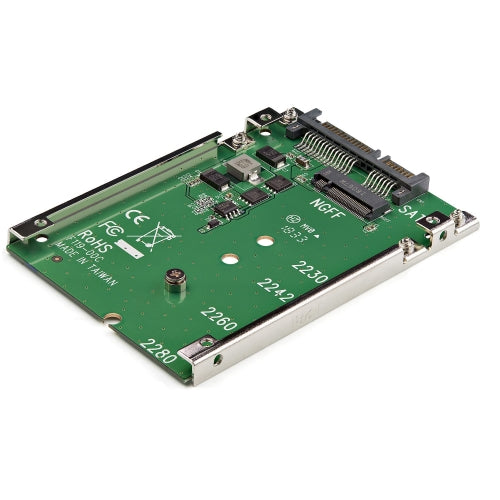

StarTech M.2 SATA SSD to 2.5in SATA Adapter - M.2 NGFF to SATA Converter - 7mm - Open-Frame Bracket - M2 Hard Drive Adapter

M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame



Description:



Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.

Boost System Performance

  • Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.

Hassle-Free Setup

  • This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.

Open-Frame Design

  • The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.

SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

Applications

  • Turn an unused M.2 (NGFF) drive into a regular 2.5in SATA solid state drive
  • Retrieve/backup data from an M.2 (NGFF) drive with a standard SATA computer
  • Access M.2 (NGFF) drives from an external source, such as a SATA drive enclosure or docking station
  • The StarTech.com Advantage
  • Maximize system speed by adding M.2 SSD performance
  • Help protect the health of your drive with an open-frame design that maximizes heat dissipation



Features:



  • Open-frame steel mounting bracket
  • Supports 7mm or larger 2.5" SATA bays
  • Supports B key M.2 SATA SSDs
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • 2.5in SATA form factor housing
  • Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
  • Not compatible with M.2 NVMe or AHCI PCI-Express SSDs



Specifications:



Connector(s)

  • Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF)
  • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)

Environmental

  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)

Hardware

  • Interface: SATA
  • Number of Drives: 1
  • Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
  • Drive Installation: Fixed
  • Supported Drive Height(s): 2230 / 2242 / 2260 / 2280

Packaging Information

  • Package Height: 1,3 in [32 mm]
  • Package Length: 5,7 in [14,5 cm]
  • Shipping (Package) Weight: 3,6 oz [102 g]
  • Package Width: 6,9 in [17,5 cm]

Performance

  • Maximum Data Transfer Rate: 6 Gbps
  • Type and Rate: SATA III (6 Gbps)
  • Hardware Raid Supported: No
  • Hot Swap Capability: No

General Specifications

  • Not compatible with M.2 NVMe or AHCI PCI-Express SSDs

Physical Characteristics

  • Weight of Product: 1,3 oz [36 g]
  • Color: Green
  • Product Length: 3,9 in [10 cm]
  • Product Width: 2,8 in [70 mm]
  • Product Height: 0,3 in [0,7 cm]

Software

  • OS Compatibility: OS independent; No software or drivers required

Warranty Information

  • Warranty: 2 Years

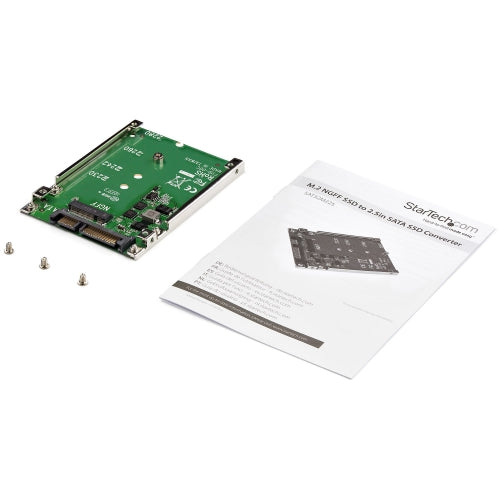

Package includes:



  • 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
  • 1 - Mounting screw kit
  • 1 - Installation manual



Note: Photos and/or description may differ from actual products. Information from suppliers or packaging.

SAT32M225 - Made in Taiwan - HD Adapter - NEW - 5299/4800 - TGCP - 16/18

IRN: 065030855600-4800

*************************************
