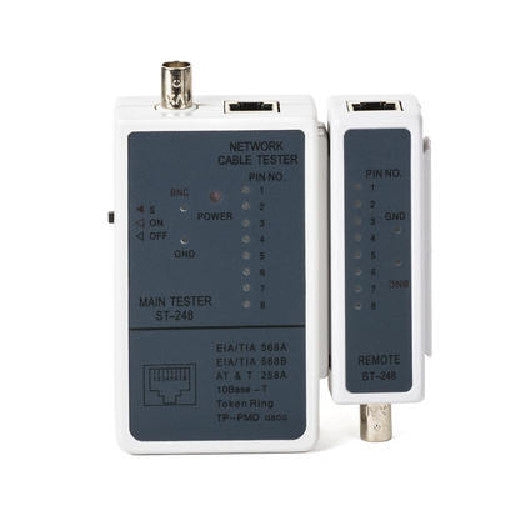

H Tools Cable Tester for UTP, STP, Coaxial BNC and Modular RJ45 RJ11 RJ12 Network Cables

$24.00 was $29.99

H Tools Cable Tester for UTP, STP, Coaxial BNC and Modular RJ45 RJ11 RJ12 Network Cables



Item: Tools - Tester



*** NOTE - This is a NEW item! ***

Suggested Retail Price New: $29.99 ~ Price**: $24.00


Description:

RJ45 RJ11 RJ12 BNC Network Cable Tester

Easy Operation Steps:

• Connect one plug of cable to Main Unit, and the other plug to Remote Unit
• Choose "OFF", "ON" or "S" to test the cable
"OFF" means Power of
"ON" means normal speed
"S" means Slow Speed
• To read the test results from the LED indications

This is a lightweight, efficient tool! You can cut and strip wire in one easy operation!

It can worked with 8P8C/RJ45, 6P6C/RJ12, 6P4C/RJ11, 4P4C & 4P2C Plugs

- See more at: http://wwwdigipartsca/rj45rj11-tool-modular-crimping-tool-p-619html#sthashFtHIHEJudpuf
This instrument is designed to identify and trace wires or cables without damaging the insulation, you can also use it in checking for short circuit and locating open circuit and so on In addition, it can also be used to identify some states of telephone line so that it is more convenient to install, debug, and maintain telephone lines, There are a Sender and a Receiver included in the instrument
Provides an adjustable volume control
Compatible with all common tracing tone sources - See more at: http://wwwdigipartsca/cable-tracker-and-toner-p-630html#sthashZS30a6Updpuf
This instrument is designed to identify and trace wires or cables without damaging the insulation, you can also use it in checking for short circuit and locating open circuit and so on In addition, it can also be used to identify some states of telephone line so that it is more convenient to install, debug, and maintain telephone lines, There are a Sender and a Receiver included in the instrument
Provides an adjustable volume control
Compatible with all common tracing tone sources - See more at: http://wwwdigipartsca/cable-tracker-and-toner-p-630html#sthashZS30a6Updpuf

Features:

Multifunctional Network Cable Tester

(1) Functions:

1 Can test correspondingly double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8andG, meanwhile can judge wrong connection, short circuit and open circuit

2 NS-4688tests BNC, RJH and RJ45; NS-468 tests RJ 11and RJ45; NS-468N tests RJ45 and BNC, ST-248 tests RJ45 and BNC

(2) Test of double-twisted cables; Switch on the power (s is slow and remote

  • Tester The lights of the main tester will turn on
  • Sequently from 1 to G
  • Main tester: 1-2-3-4-5-6-7-8-G
  • Remote tester: 1-4-3-2-5-6-7-8-G

Following are abnormal connections:

1 If one cable, for example cable NO 3is open circuited, the two NO 3lights of
The main tseter and remote tester will not turn on
2 If several cables are not connected, several lights will not turn on respectively If less than
Two cables are conntected, none of the lights is on
3 If two ends of a cable is disordered, for example NO 2and NO 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
4 If two cables are short circuited, neither of the corresponding lights ison of the remote
Tester while main tester remains unchanged If three cables, including three, are short
Circuited, none of the corresponding liaghts is on

(3) If test patch panels or wall plate outlels, two cables which can match each other(eg110
P4 and RJ45)will be connected to the tester

(4) If test cables of the same axes, BNC turns on when the cable works

Specifications:

  • Product Name: Cable Tester HM-CT/ST248
  • Function: Open / Short / Straight / Crossover
  • Cable type: Network and Telephone Cables
  • Port RJ45 BNC
  • Cable state testing (2-wire):
  • Line DC detecting;
  • Anode and cathode determination;
  • Ringing signal;
  • Detecting open, short and cross circuit testing
  • Consume electricity: 25mA
  • Power: 9V DC laminated batter
  • Certification: CE & RoHS
  • Color: White and gray
  • Weight: 160g
  • Size: 111cm/L 9cm/W 25cm/H

Package includes:

  • 1x Cable Tester
  • 1x Manual

Attention: NO batteries included - Requires 9V battery sold seperatly

Note: Photos and/or description may differ from actual products Information from suppliers or packaging

CT/ST-248 - Made in China

*************************************

Don't miss this deal!

*************************************



IRN: 888620036131-2400
