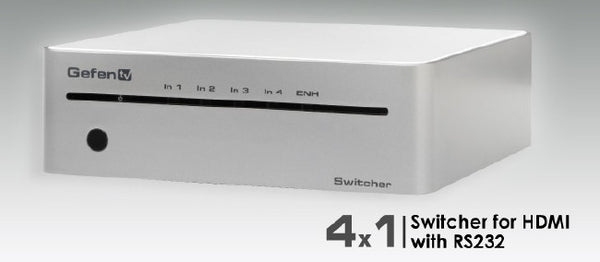

GefenTV 4x1 Switcher for HDMI with RS232, Cables and Remote

$195.00 was $224.99

GefenTV 4x1 Switcher for HDMI with RS232, Cables and Remote



Item: Switch



*** NOTE - This is a NEW item! ***

Suggested Retail Price New: $224.99 ~ Price**: $195.00


Description:

Switch between any of four HDMI inputs to one HDMI output

The GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display Resolutions up to 1080p Full HD with multichannel digital audio are supported The front panel LEDs show the currently selected source This 4x1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input The 4x1 Switcher will revert to the previous input once the current device is turned off or disconnected Any of the four Hi-Def sources can be selected by the push-button, IR remote control, or using the RS-232 control

How It Works

Connect up to four HDMI sources to the GefenTV 4x1 Switcher for HDMI with RS232 using the supplied cables Connect the HDTV display to the HDMI output Connect the 5V power supply to the 4x1 Switcher Apply power to the source devices and the display The Hi-Def source is displayed and will follow the current switching selection

Supported HDMI 13 Features:

225 MHz (up to 12 bit YUV 444 @ 1080p)
Deep Color
Dolby TrueHD and DTS-HD Master Audio
3DTV Pass-Through
Lip-Sync Pass-Through
CEC Pass-Through

Features:

  • Supports resolutions up to 1080p Full HD and 1920x1200
  • Supports 3DTV Pass-Through
  • Supports LPCM 71 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
  • Local Switching / Auto-Switching feature
  • RS-232 control
  • IR remote control
  • Supports DVI sources and DVI displays with an HDMI-to-DVI adapter
  • Energy Star Compliant

Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Input Video Signal: 12 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Input Connectors: (4) Type A, 19-pin female
  • HDMI Output Connector: Type A, 19-pin female
  • RS-232 Connector: DB-9 female
  • Power Supply: 5V DC
  • Power Consumption: 10 Watts (max)
  • Operating Temperature: 0 - 40 ½C
  • Dimensions: 6.9" W x 2.1" H x 6.9" D
  • Shipping Weight: 6 lbs

Package Content:

  • (1) GefenTV 4x1 Switcher for HDMI with RS232
  • (4) 6 ft HDMI cables (M-M)
  • (1) 6 ft Serial DB9 cable (M-F)
  • (1) IR Remote Control (RMT-4IRN)
  • (1) 5V DC Power Supply
  • (1) User Manual

Note: Photos may differ from actual products

GTV-HDMI13-441N - Made in Taiwan

*************************************
