75 ft. 26AWG CL2 Standard HDMI Cable w-Built-in Equalizer - Black

$106.01 was $179.99


Find us on Google



75 ft. 26AWG CL2 Standard HDMI Cable w-Built-in Equalizer - Black



Item: Cable - HDMI



*** NOTE - This is a NEW item! ***

Suggested Retail Price New: $179.99 ~ Price**: $125.00



Description:

A Standard HDMI Cable is the only way to ensure that you have the ability to pass the standard signals authorized in the latest HDMI feature specification

The built-in equalizer on this cable is used to regenerate and restore the proper timings of the TMDC and DDC signals This helps boost the HDMI signal, allowing it to be reliably transmitted over longer distances No external power is required for this function, it is entirely driven by the internal 5VDC signal carried over the HDMI cable

The equalizer has a dial with which you can set the level of boost that is given to the signal The amount of boost depends largely on the strength of the equipment Equipment with stronger output signals should use settings in the 1-4 range, while weaker signals will need more boost using settings in the 5-7 range

Although this cable may work with High Speed 1080p signals, it is nevertheless recommended the use of an HDMI extender for more reliable transmission of High Speed and 3D enhanced HDMI signals over long distances

The CL2 rating on this cable indicates that its outer jacket has been designed to burn more slowly, thereby making it safe for use inside or through the walls of residential classed buildings The CL2 rating ensures that your cable installation complies with fire safety codes and insurance requirements

TIP: It is a good idea to test cables and connections before installing them inside a wall

Features:

This cable supports the following HDMI features:

  • 720p/1080i Resolution - The Standard HDMI Cable has sufficient bandwidth to transfer 720p/1080i video signals between 720p/1080i rated source and sink (display) devices

  • Audio Return Channel - Normally, your HDMI cable carries audio information along with the video from a source device (eg blu-ray player) to the sink device (display/television) Often times this goes through an AV receiver to drive a home theater audio system The Audio Return Channel is primarily used to send the audio signal generated by the television when its internal tuner is used, back to the AV receiver, so that you can use your home theater audio system when watching television signals

  • Deep Color - The Deep Color feature provides a minimum of 8-bits per color element (24-bits total), providing for a total of over 16 million color variations Other versions of Deep Color allow for up to 16-bits per element, for a total of 48-bits and over 281 trillion color variations, which really makes your video images come to life!

  • xvColor - xvColor is a promotion name given to the products that have the capability to realize a wide color space based on the xvYCC specifications and is a trademark of Sony Corporation Currently, only AVCHD and PlayStation 3 devices support xvColor

  • High Definition Audio - HDMI supports a full range of high definition audio types, including SA-CD, DVD-Audio, DTS-HD Master Audio, and Dolby TrueHD

Specifications:

Connector Type

HDMI male to HDMI male

Connector Finish

Gold

Length

75 ft

Gauge

26 AWG

Number of Conductors

19

Conductor Plating

Tin

Shielding Level

Triple

Shielding Type

EMI

Ferrite Cores

No

Net Jacket

No

Built-in Equalizer

Yes, adjustable

HDMI Ethernet Channel

No



Supported Resolutions

480i to 1080i

Bandwidth

tested to 165 MHz per channel (495 MHz total)

Data Throughput

tested to 165 Gbps per channel (495 Gbps total)

Deep Color

10-bit, 12-bit, and 3x16-bit (48-bit RGB or YCbCr), XVColor

Supports DVD Audio

Yes

Supports SACD

Yes

Supports Dolby TrueHD & DTS-HD Master Audio

Yes



HDMI Certified

Yes

HDCP Compliant

Yes

CEC Compliant

Yes

ROHS Compliant

Yes



CL2 (In-Wall)

Yes

VW-1

Yes

Voltage Rating

30V

Temperature Rating

80 C

Package Content:

  • 1 x HDMI Cable

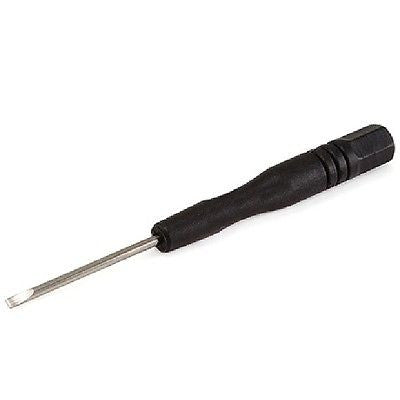

  • 1 x Screwdriver

Note: Photos may differ from actual products

7697 - Made in China

*************************************
