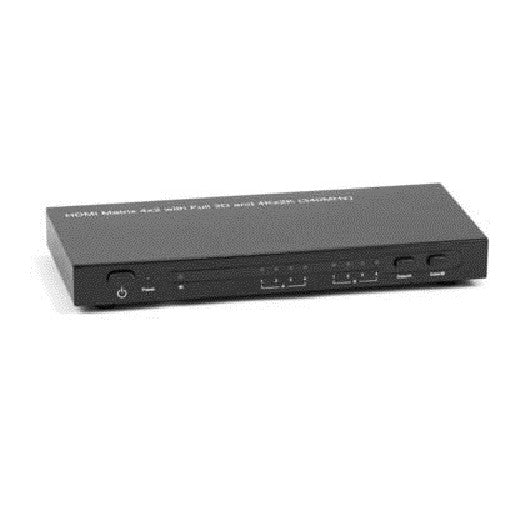

4x2 HDMI Matrix with Full 3D and 4Kx2K - 340MHz

$90.00 was $145.99

4x2 HDMI Matrix with Full 3D and 4Kx2K - 340MHz

Item: Cables

*** NOTE - This is a NEW item! ***

Suggested Retail Price New: $145.99 ~ Price**: $90.00


The HDMI Switch Splitter Matrix routes high definition video in multiple resolutions up to 4KX2K plus multichannel digital audio from any of the four HDMI sources to two displays

It works with HD-DVD players, Blu-ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays Every source is accessible at all times by any display by selecting it with an IR remote


  • Switches easily between any four HDMI sources
  • Distributes any of the four inputs to any or any combination of the two HDMI output displays
  • Supports highest video resolution 4KX2K
  • Supports 340MHz/34Gbps per channel (102Gbps all channel) bandwidth
  • Supports 12bit per channel (36bit all channel) deep color
  • Supports HDCP
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD
  • Support 3D all format, including 1080p@2398/24Hz, 720p@5994/60Hz/50Hz, bandwidth up to 340MHz


Signal Inputs/Output

Input Video Signal: 5 Volts p-p (TTL)
Maximum Single Link Range: 4KX2K
Output Video: HDMI
HDMI Input/Output Connector: Type A 19 pin

Operating Frequency

Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 34Gbps/340MHz


Interlaced(50&60Hz): 480i,576i,1080i
Progressive(50&60Hz): 480p,576p,720p,1080p,4KX2K


Size(H-W-D): 110mmW x 25mmH x 260mmD
Weight(Net): 0854KGs


Operating Temperature: 0 ? to +70?
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10? to +80?
Storage Humidity: 5% to 90 % RH (no condensation)

Power Requirement

External Power Supply: 5V <DC@2A
Power Consumption(max): 4 W

Regulatory Approvals

Converter Unit: FCC,CE
Power Supply: CE,FCC

Package includes:

  • 1 x 4x2 HDMI Matrix Switch
  • AC Power Adapter: US standard
  • User Manual: English Version

Note: Photos, description and specifications may differ from actual products

5689-HYS-MW006 - Made in China
