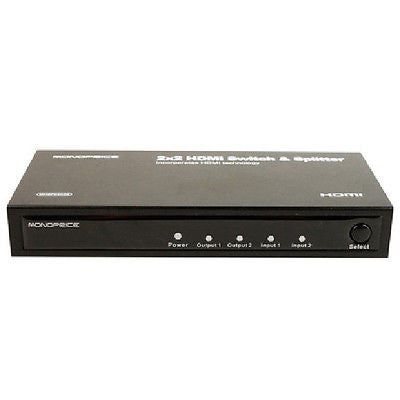

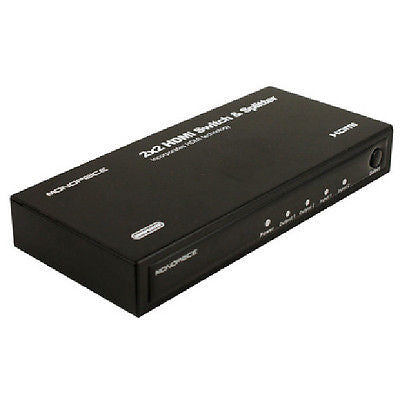

Switch, split, and amplify your HDMI signal with this Switch/Splitter!

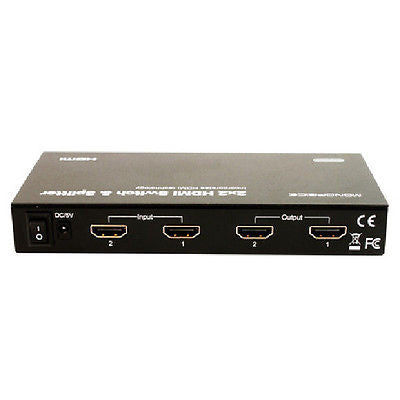

The switch has two HDMI inputs and two HDMI outputs, so you can switch between two input source devices and send the signal simultaneously to two displays No setup or special configuration is required, simply connect the input device(s) and output device(s), then start using it!

The unit also has a built in, automatically adjusting amplifier This means that you can use longer than normal HDMI cables running to the inputs The built-in amplifier will then regenerate the HDMI signal before sending it to the outputs This lets you extend your HDMI beyond the normal range (25 feet) for High Speed (1080p) signals

The unit supports up to 1080p resolution, 12-bit per channel color depth, and high definition audio signals, such as DTS Digital, Dolby Digital, DTS-HD Master Audiuo, and Dolby TrueHD, as well as standard LPCM stereo

Note that you don't have to have two inputs and two outputs to use this device You can use just the switching function if you only have one display or just the splitter function if you have only one input

Note: It is strongly recommended to use a minimum 24 AWG HDMI cables when connecting a device, such as this switch/splitter, between the source and destination devices to ensure minimal signal loss and maximum High Speed signal reliability

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries

DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories

Maximum Video Resolution	1920x1080 (1080p)
Video Output	HDMI? with HDCP pass-through
Video Input	HDMI?
Vertical Frequency Range	60Hz
Video Amplifier Bandwidth	225 MHz / 225 Gbps per channel
Supported Video Resolutions	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Color Depth	12-bits per channel (36-bit total)
Supported Audio Formats	LPCM, DTS? Digital, Dolby? Digital, DTS-HD Master Audio?, Dolby TrueHD?

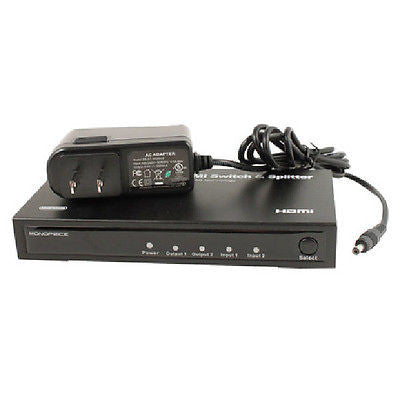

Input Power Requirement	5V DC, 2A
Power Consumption	10 Watts (Max)
AC Adapter Input Power Requirement	100-240 VAC, 50/60Hz, 05A max
Operating Temperature	0?C to +70?C
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10?C to +80?C
Storage Humidity	5% to 90% RH (no condensation)
Dimensions	6 1/16" wide, 2 3/4" deep (2 15/16" including rear rocker power switch), 7/8" thick (1" including rubber feet)
Weight	260 gm
Regulatory Compliance	FCC, CE, UL (US and Canada), RoHS

Package Contains

8155 - Made in China

**********************************************************************************

IRN: 844660081555-7600
