Bi-Directional IDE to SATA or SATA to IDE Adapter


Item: Adapter

Bi-Directional IDE to SATA or SATA to IDE Adapter

Description: *** NOTE - This is a NEW item!

Suggested Retail Price: $29.95

This Adapter Does it All , SATA Hard Drive To IDE Converter or IDE Drive to SATA Host Converter

This is a Bi-Directional converter for serial and parallel ATA translation,it includes the Serial ATA PHY , Link, Transport and Parallel ATA (application layer) controller,the Serial ATA physical , link and transport layers are compliant to serial ATA I/II

With this adapter you can convert IDE to SATA and SATA to IDE: it's bidirectional! It can be plugged into your drives or your motherboard Can be used to upgrade an older computer, optical drive, or hard drive Or, use it to make a newer drive backward-compatible! Package includes 12"/30cm SATA cable, power adapter cable, and adapter bridge

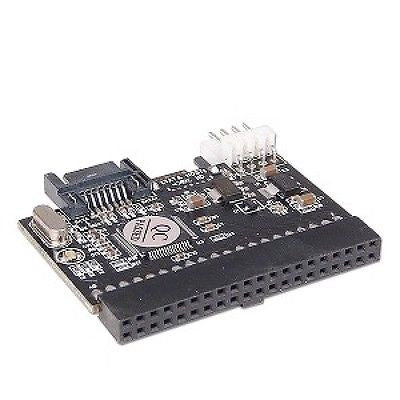

Bidirectional IDE to SATA Converter

- With LED indicated Power
- Easy install & no Driver Needed
- Serial ATA 10/20 Specification Compliant
- Automatic Serial ATA 15 Gbps Speed negotiation
- ATA /ATAPI PIO mode 0 to 4
- ATA / ATAPI Ultra DMA of Transfer rate 167 , 25, 33, 48, 66, 100, 133 , 150, 300MB/s
- ATA /ATAPI LBA48 addressing node associated with 2-byte sector count
- Support Serial ATA hot-Plug
- Ultra low power Consumption
- Work for both AC and DC couple between the transmitter and the receiver
- Provide Specified OOB signal detection and Transmission
- Support Spread Spectrum Clocking to reduce EMI
- Support Partial / Slumber Power Management
- Provide adjustable TX signal amplitude and pre-emphasis level
- Slave Support
- Support Windows 98/SE/ME/2000/XP/Vista
- Support a 3GHz Data Rate


  • One (1) IDE connector
  • Two (2) SATA connectors
  • One (1) 4-pin power connector

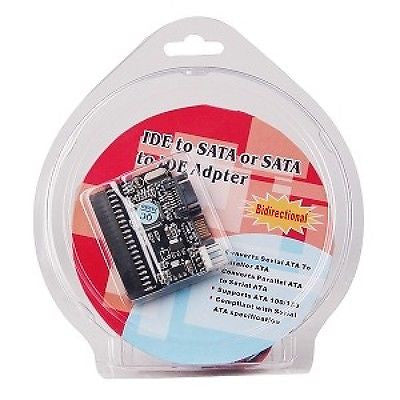

Package includes:


  • 1 x PATA to SATA or SATA to PATA
  • Bidirectional Converter

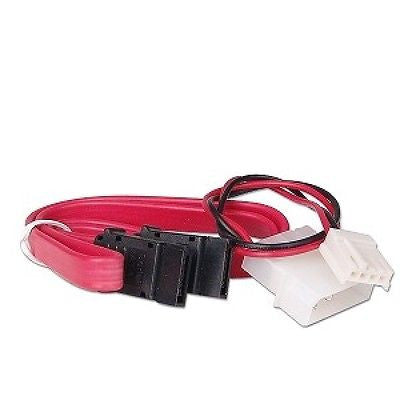

  • 1 x SATA Data Cable


Made in China


Don't miss this deal!

IRN: 773070825513-2500



Sold Out
