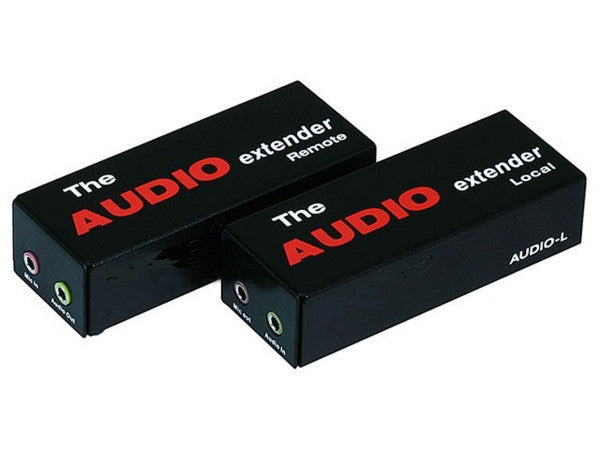

Allows the extension of a stereo audio signal and/or microphone up to 300 metres (984') using one CAT5e cable (between the remote and local unit to required distance)
Features:
The extension of audio stereo and microphone up to 300 meter away by using the Audio Extender and one CAT 5e cable
Audio Out supports multimedia speakers and headphones or earphones
Mic In supports Condenser Microphone and Dynamic Microphone
Built-in Microphone preamplifier
Microphone gain can be adjustable
Specifications:
Audio Out/In Connector: 1x 35mm
Mic In/Out Connector: 1x 35mm
RJ-45 Connector: 1
Frequency response: 10 Hz to 25 KHz /-3dB (1Vp-p/10k Ohms)
Audio In impedance: 10k Ohms
MAX Audio Input level: 18Vp-p
MAX Mic Input level: 05Vp-p
MAX Mic gain: 0 to +15dB
Cable Distance: 300 m (Max)
Power Adapter (Min): DC 9V 300mA
Housing: Metal
Dimensions (LxWxH) mm: 92x34x22
Package includes:
Audio Extender Local Unit
Audio Extender Remote Unit
1 user manual
1 power adapter DC 9V/300mA
1 custom cable (2L-1218C)
Note:Photos and/or description may differ from actual products Information from suppliers or packaging Not responsible for any discrepancies
