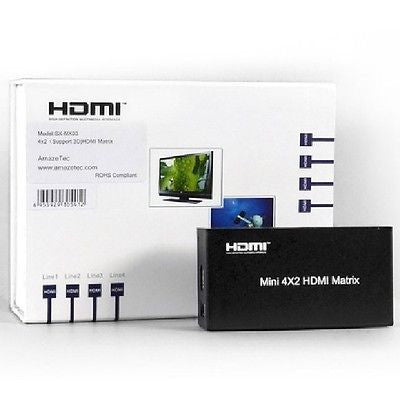

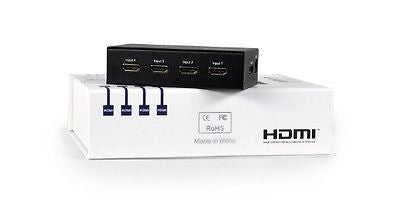

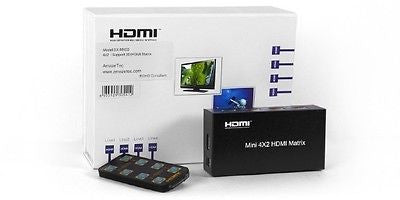

Welcome to the next level in Amazetec's ongoing quest to bring you the finest HDMI Matrix switches available at the lowest prices on the market!
This switch offers advanced HDMI features such as support for 12 bit deep color and a true matrix design which allows all four inputs and two outputs to be independently selected
It can work as either a switch, sending a specific input to a specific output of your choice, or it can work as a splitter sending one input signal to both outputs simultaneously Compliant with the latest and greatest HDMI standard (13b), this unit is also backward compatible with all prior versions of HDMI so none of your HDMI devices will be left out of your configuration
Features:
Supports 4 signal inputs, 2 signal outputs The two output signal program can be different or the same
HDMITM (V1.3 with deep color)
Supports Standard Audio, DSD Audio and HD(HBR)Audio
Supports high-definition format up to 1080p

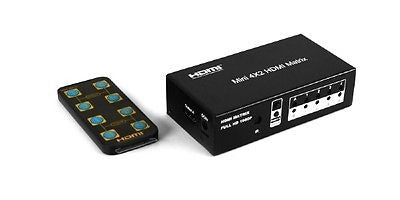

With remote controller
HDMI Repeater with Equalizer
CONNECTING AND OPERATING
1 Plug the 5VDC power supply into power input and the unit is ready to use
2 Connect the HDMI signal sources (Such as PS3, STB etc) into HDMI input
3 Connect the cables from your displays (monitor or projector) into the HDMI Outs of the output A and output B
4 Use the remote controller or press buttons to select input signal source for Output A and output B
MAINTENANCE
Clean this unit with a soft, dry cloth Never use alcohol, paint thinner of benzine to clean this unit
Specifications:
Operating Temperature Range: -5 to +55 Deg
Operating Humidity Range: 5 to 90%RH (No Condensation)
